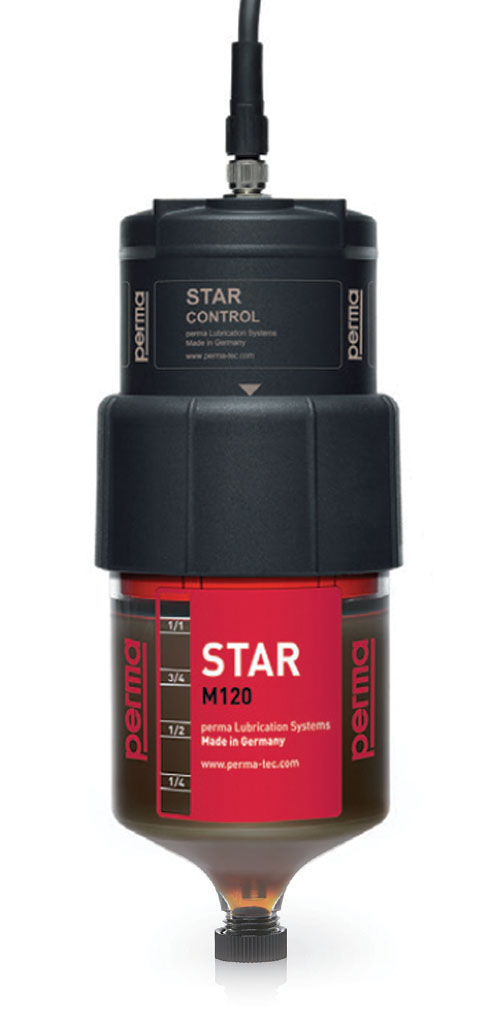

perma STAR CONTROL is machine / PLC controlled and can easily be integrated into machines with external power supply. The operating status can be transmitted to the PLC. The lubrication system offers two operating modes - TIME and IMPULSE - for more flexibility. In TIME mode, discharges are only carried out when the machine is in operation. In IMPULSE mode, the system discharges a predefined lubricant amount every time external power is applied. The desired mode can be selected via the display. perma STAR CONTROL consists of an electromechanical drive unit with LCD display and an LC unit (available in three different sizes 60 cc, 120 cc, 250 cc). The system discharges exact amounts independent of temperature and up to 6 bar counter pressure.
-
- Drive
- Electromechanical drive using external voltage
-
- Power supply
- External: 9 - 30 V DC, I (max) 0.5 A
-
- Discharge period
- 1, 2, 3, ..., 12 months / Impulse control
-
- Lubricant volume
- 60 cc (2.03 oz) or 120 cc (4.06 oz) or 250 cc (8.45 oz)
-
- Operating temperature
- -4 °F to 140 °F / -20 °C to 60 °C
-
- Pressure build-up
- 87 psi / 6 bar
-
- Number of outlets
- 1
-
- Protection class
- IP 65
-
- Lubricants
- Grease up to NLGI 2 / oil
-
- Max. tube lengths
- 5.00 m
