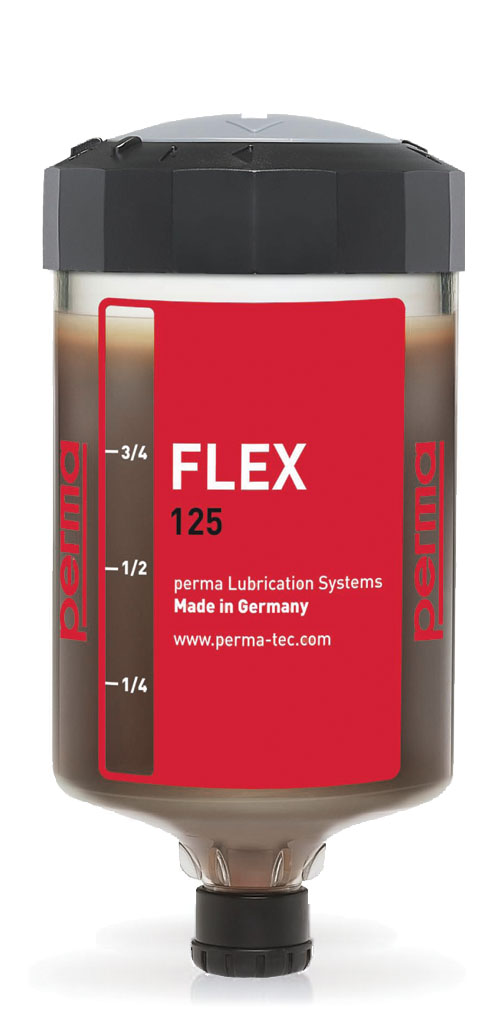

The automatic lubrication system perma FLEX is available in two convenient sizes (60 cc / 125 cc). It can be used for inside or outside applications at temperatures ranging from -4 °F to 140 °F (-20 °C to 60 °C). Discharge period setting is flexible and can be adjusted from 1 – 12 months using the dial on top of the lubricator.
perma FLEX comes fully assembled and ready-to-use. Simply turn the dial to the desired discharge period and the system is activated. The electronically controlled chemical reaction will build up the pressure that is necessary to continually supply the lubrication point with fresh lubricant.
-
- Drive
- Electrochemical reaction via gas generating unit
-
- Housing
- Transparent plastic
-
- Discharge period
- 1, 2, 3, …, 12 months
-
- Lubricant volume
- 60 cc (2.03 oz) or 125 cc (4.23 oz)
-
- Operating temperature
- -4 °F to 140 °F / -20 °C to 60 °C
-
- Pressure build-up
- max. 73 psi / 5 bar
-
- Protection class
- IP 68
-
- Lubricants
- Grease up to NLGI 2 / oil
-
- Max. tube lengths
- 2.00 m
